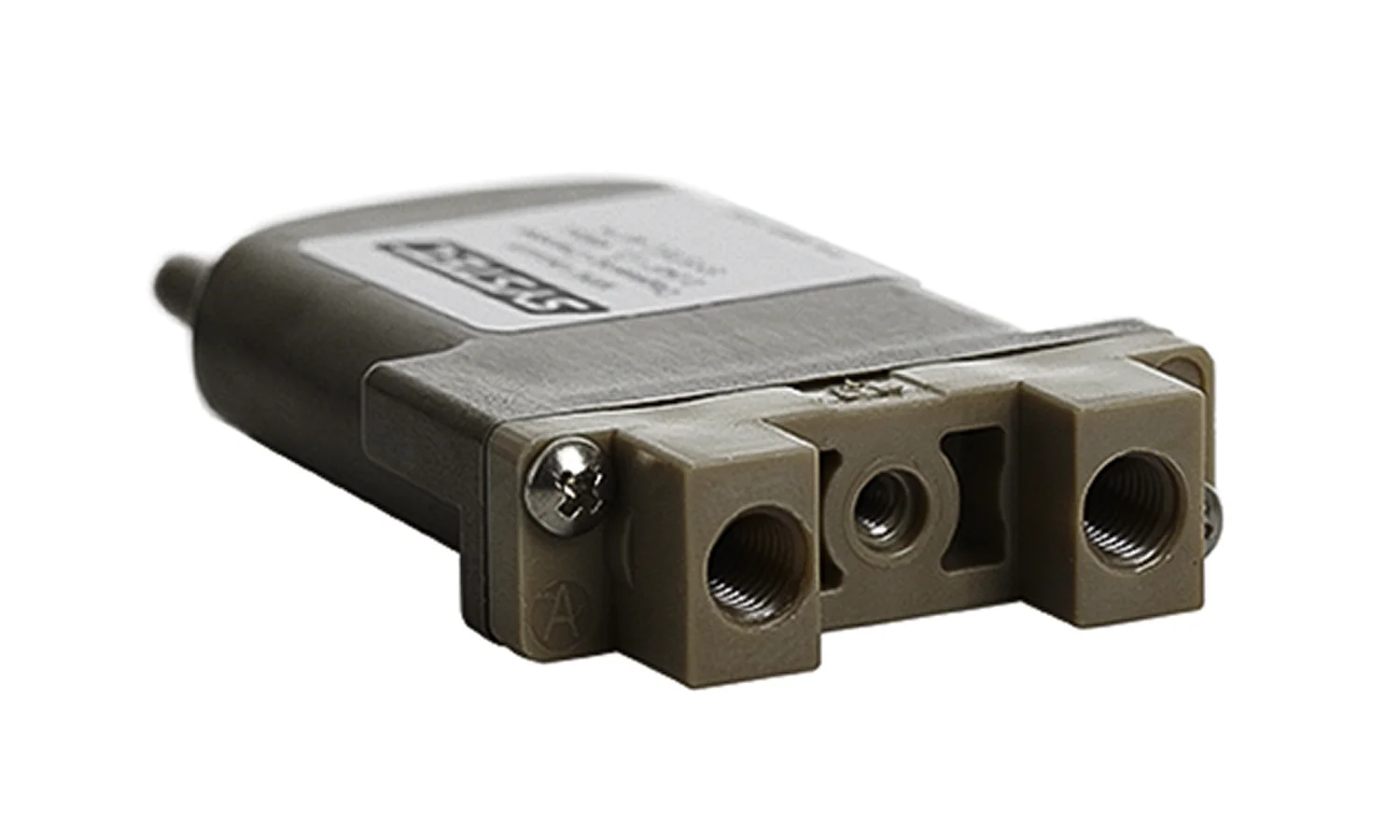

Product information "Systec Mini Vacuum Degassing Chamber (3 ml/Min) 0.045'' I.D. 480 µL"
The corresponding bracket for this degasser chamber is available under article no. 725000145.
The MINI Degassing Chamber is the ideal solution to keep bubbles out of fluidic systems and liquid chromatography pumps and ensure a stable baseline. Systec(R) AF is compatible with a wide range of typical organic solvents used in HPLC and offers a chemically inert flow path.
Additional information
The MINI Degassing Chamber is the ideal solution to keep bubbles out of fluidic systems and liquid chromatography pumps and ensure a stable baseline. Systec(R) AF is compatible with a wide range of typical organic solvents used in HPLC and offers a chemically inert flow path.
Additional information
Chemical Compatibility | See Solvent Compatibility Chart |
Height (in) | 0.5 |
Length (in) | 2.48 |
Liquid Connections | 1_4-28 UNF |
Max Flow Rate (mL/min) | 10 |
Membrane Type | Systec AF |
Recommended Flow Rate (ml/min) | 3 |
Tubing ID (in) | 0.045 |
Tubing ID (mm) | 1.143 |
Vacuum Connection | Barb connector for 1/8 ID elastomeric Tubing |
Vacuum Performance | 43% O2 Remaining at 2ml/min 50mmHg Vacuum |
Wetted Materials | Systec AF, PEEK and Glass-filled PTFE |
Width (in) | 1.75 |
