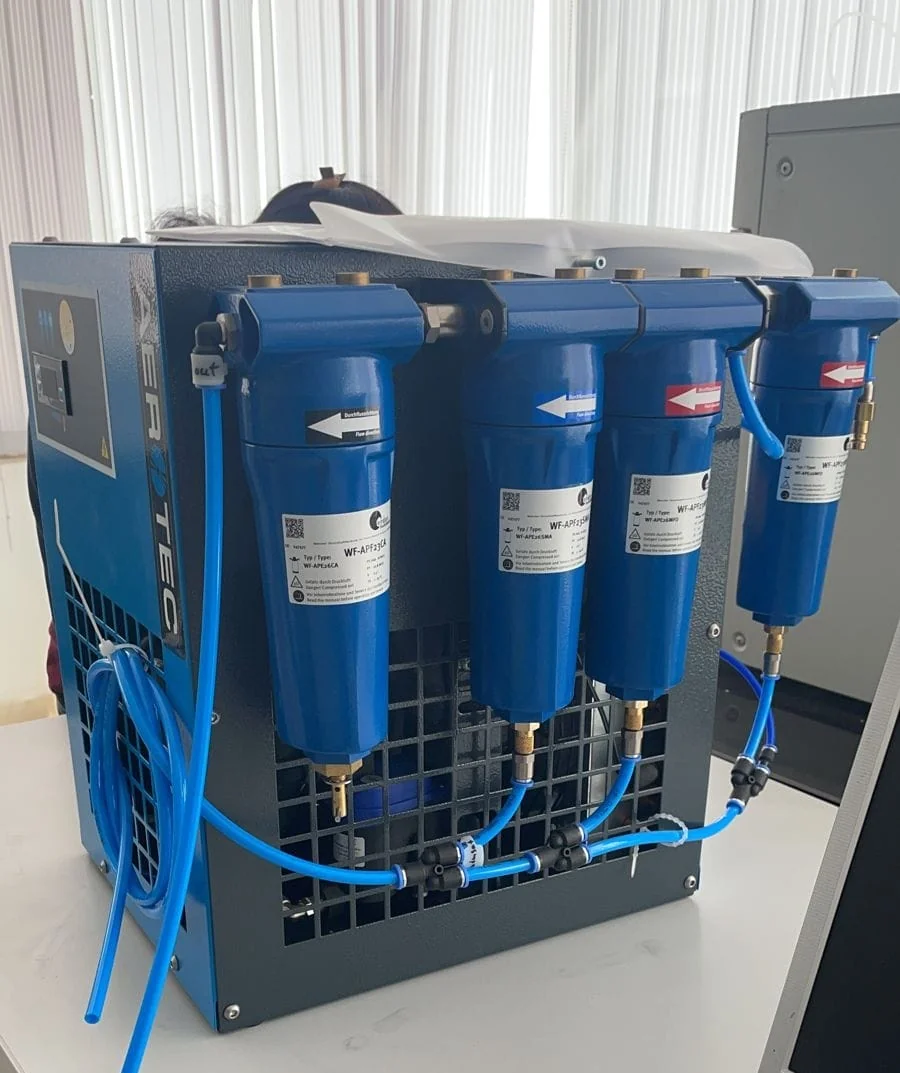

Vollautomatischer Druckluftaubereiter bestehend aus- AERODRYPRO700 Volt/Hz 230/50 Maße in mm 305 x 373 x 440 Gewicht kg 23 Luftanschluss Zoll 3/4" Leistungsaufnahme W 120 Volumenstrom L/Min 700 • Verfügt über eine Edelstahl-Demister zur sicheren Abscheidung, sowie einen vollautomatischen Kondensatablass • Perfekter Entzug des Kondensats aus der Druckluft, somit bester Schutz vor Korrosion • Mit niveauregulierten Ableiter - Druckluftfilter Batterie mit - 2x 1 Mikron, 35qbm/h - 0,01 Mikron, 35qbm/h - Aktivkohlefilter

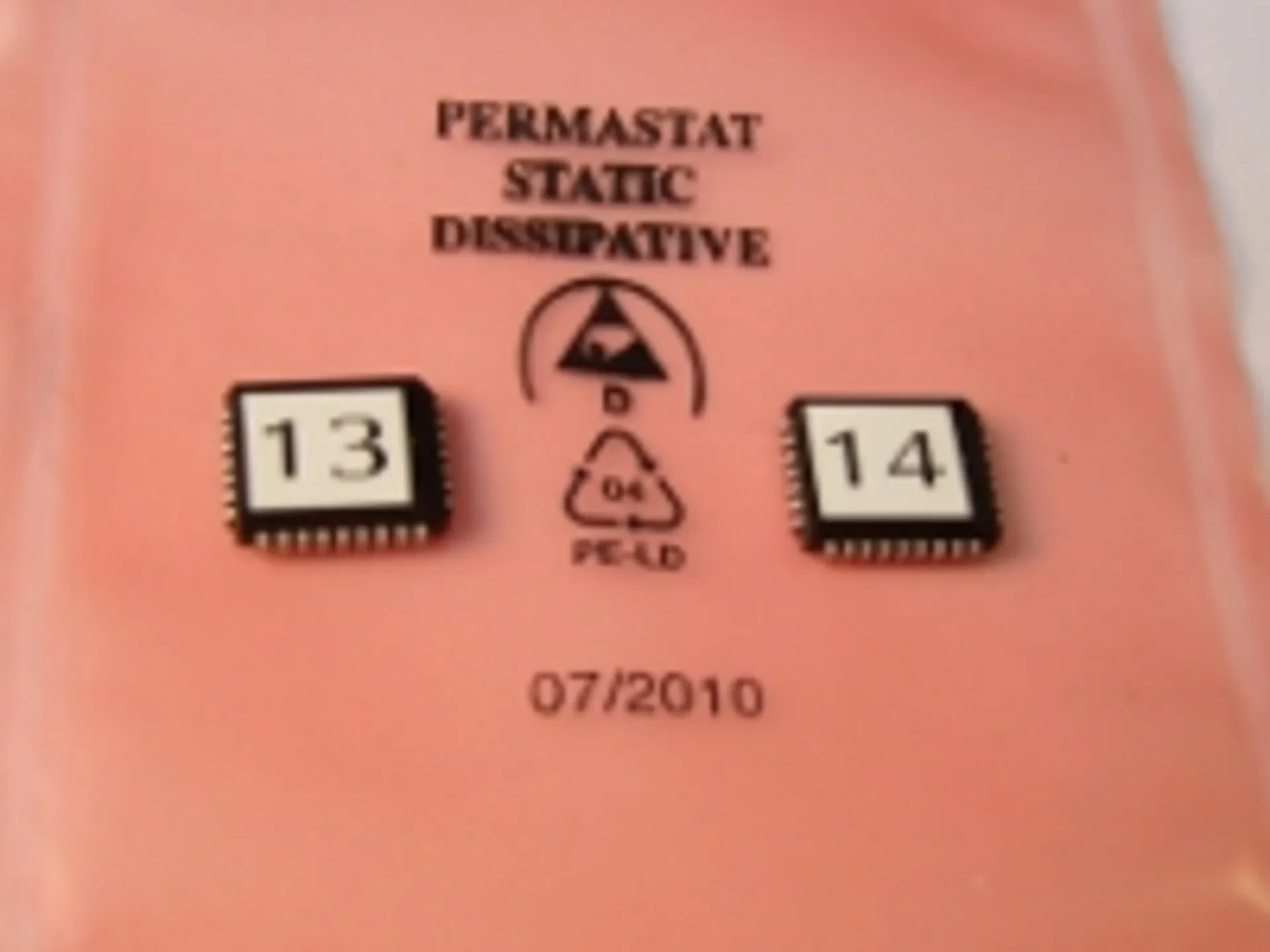

(PROM Kit) This kit is needed in case of a failed firmware upgrade procedure. This can be caused by a faulty (dusty) disk drive in the Alliance.After a failed upgrade the Alliance can&apos,t initialize. In this case you need a fresh set of boot roms. The chips U13 and U14 are locatedin the top right corner of the Alliance mainboard. The mainboard can be accessed by removing the left side panel.You can use two small flat screwdrivers or a plcc removal tool to pull the chips out. The chips have a flat edge and fit only in one direction.When the chips are replaced the Alliance runs a boot program where it can read a firmware disk. Based on this firmware floppy disk youcan make it a 269X/279X or dissolution module.We recommend to use a new floppy disk and a tested floppy drive for firmware upgrades.Replaces Waters part no.: WAT271250Version: 1.2Quantity: 1For Waters Alliance 2690 Separations Module, 2690D Dissolution Separations Module, 2695 Separations Module, 2695D Dissolution Separations Module, 2790 Separations Module, 2795 Separations Module

Replaces Waters part no.: WAT271019Compatibility: Waters Alliance 2690 Separations Module, 2690D Dissolution Separations Module, 2695 Separations Module, 2695D Dissolution Separations ModuleThis kit contains:1 Standard Needle2 Seals

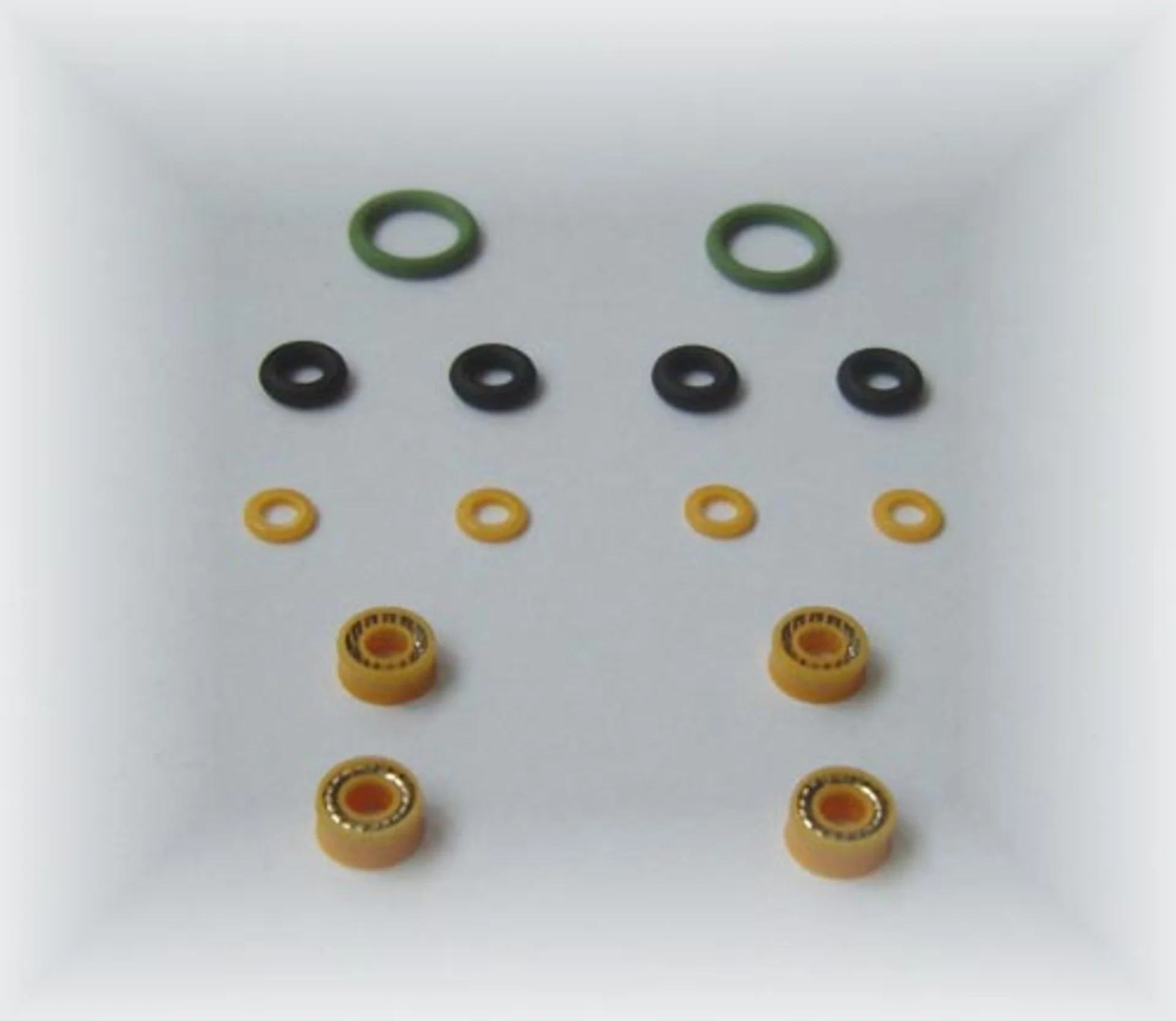

Kit with all seals needed to refurbish the pumpThe kit consists of:2x Waters Alliance Plunger Seal2x Waters Alliance Plunger Wash Seal4x Waters Alliance Face Seal2x Waters Alliance Face Wash Seal4x Waters Alliance Wash Tube SealFor 2690 Separations Module, 2690D Dissolution Separations Module, 2695 Separations Module, 2695D Dissolution Separations Module, 2790 Separations Module, 2795 Separations Module

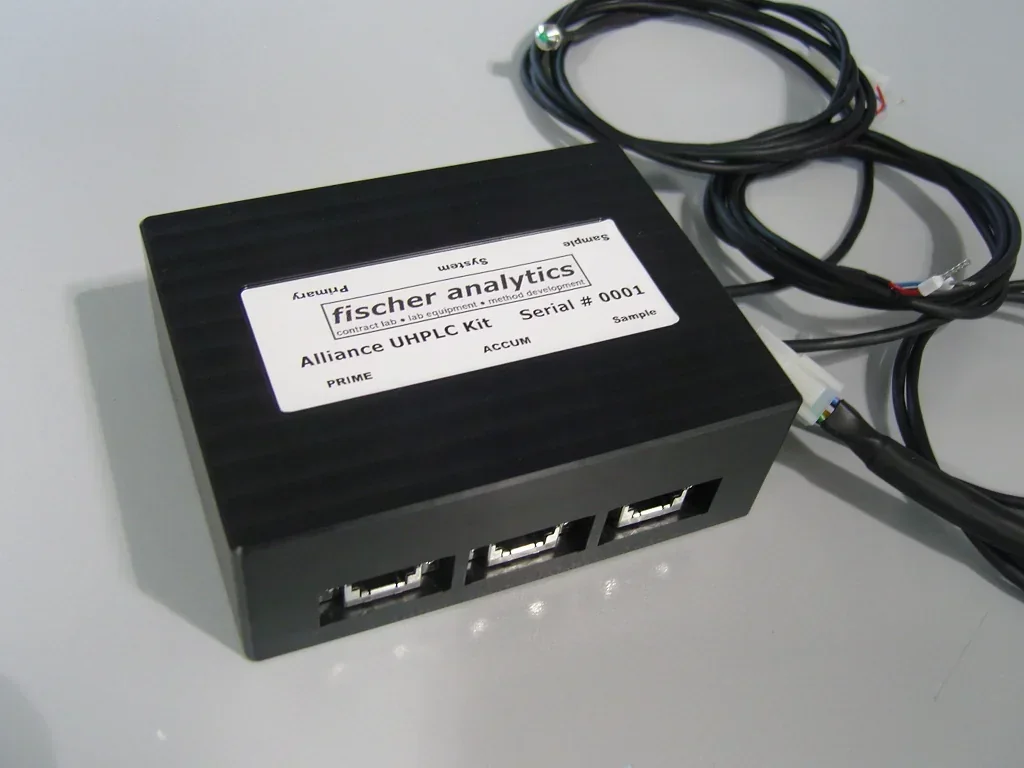

The Kit consists of the electronic upgrade board with all accessories. It can be installed within one hour and no other parts need to be changed. With the upgrade installed, the Alliance can be reliably used up to 600bar (9000 psi). Advanced users may deactivate the maximum pressure limit to release all resources of the pump.Pressures up to 1000bar and more are possible. For further information contact one of the listed distributors and have a look at our technical notes that explains how the upgrade works.

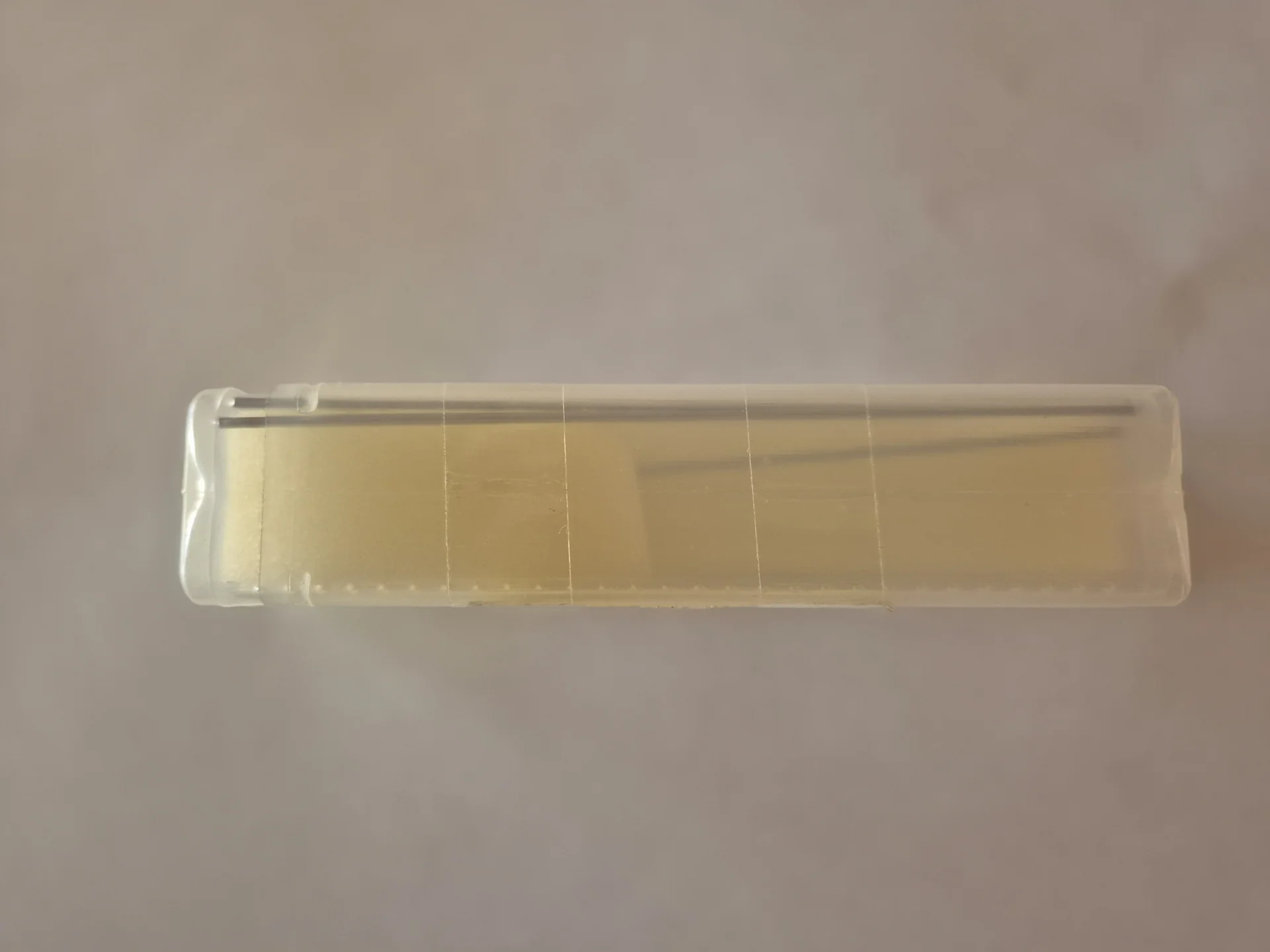

This needle is available as a single part from Waters 700001247 or as a kit WAT271019. The same for the 717 injector, kit WAT045559. Our needles and seals can also be used to repair a 717 sealpack. Remove the old seals, insert new ones, screw the sealpack together and you have a new sealpack. Some service people may have told you that the complete sealpack must be changed because the seals are pre-aligned. In practice there is no magic and you can re-use your old stainless steel parts with new seals. The alignment is done by the sealpack calibration in the 717 diagnostics.Watch out for other aftermarket needles. Quality is most important. This part must be manufactured precisely. Our needle has some new features compared to the original part. Our surface modification shows highly reduced friction to the seals. A micro fluidic solvent film is built on the surface that acts as a lubricant. With this needle installed the injector is able to do injections over 1000bar (15k psi)!
