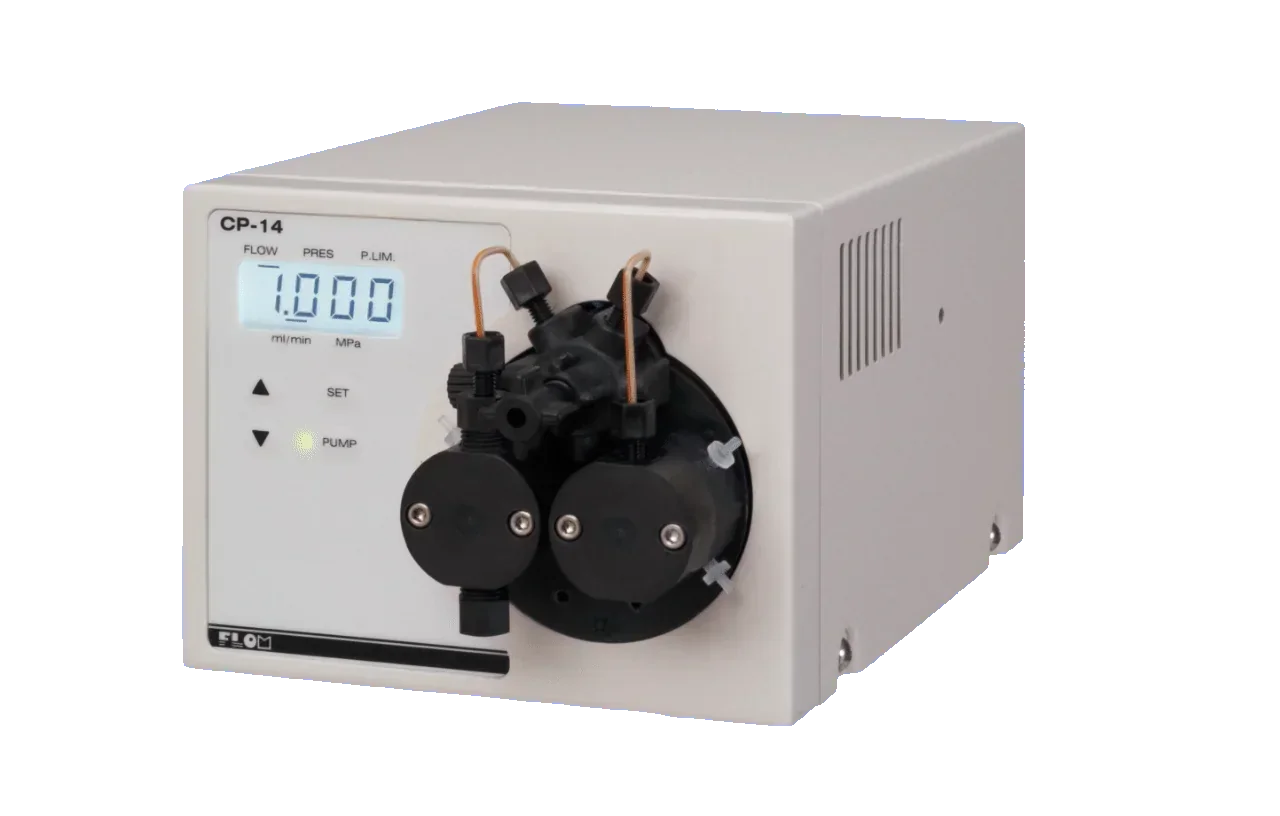

Flom Cascade Pump CP-14, Gradient Controller GE-11 / Ausstellungs-Gradientensystem
Ausstellungssystem bestehend aus:2x Cascade Pump CP-14, 0,001-10 mL/minMax. pressure: 25 MPa / 20 MPaFlow rate range: 0,001-10 mL/minFlow per stroke: 69 µLFlow accuracy: ± 0,5%Features: Active pulse reduction, Flow volume compensation, Pressure loss compensation, Set volume dispensing1x Gradient Controller GE-11An easy to program controller for gradient flow applications using 2 or more pumps.Compatible with FLOM pumps:HI-12-33HP-12-33AI seriesKP seriesSP seriesCP-14
Preis auf Anfrage

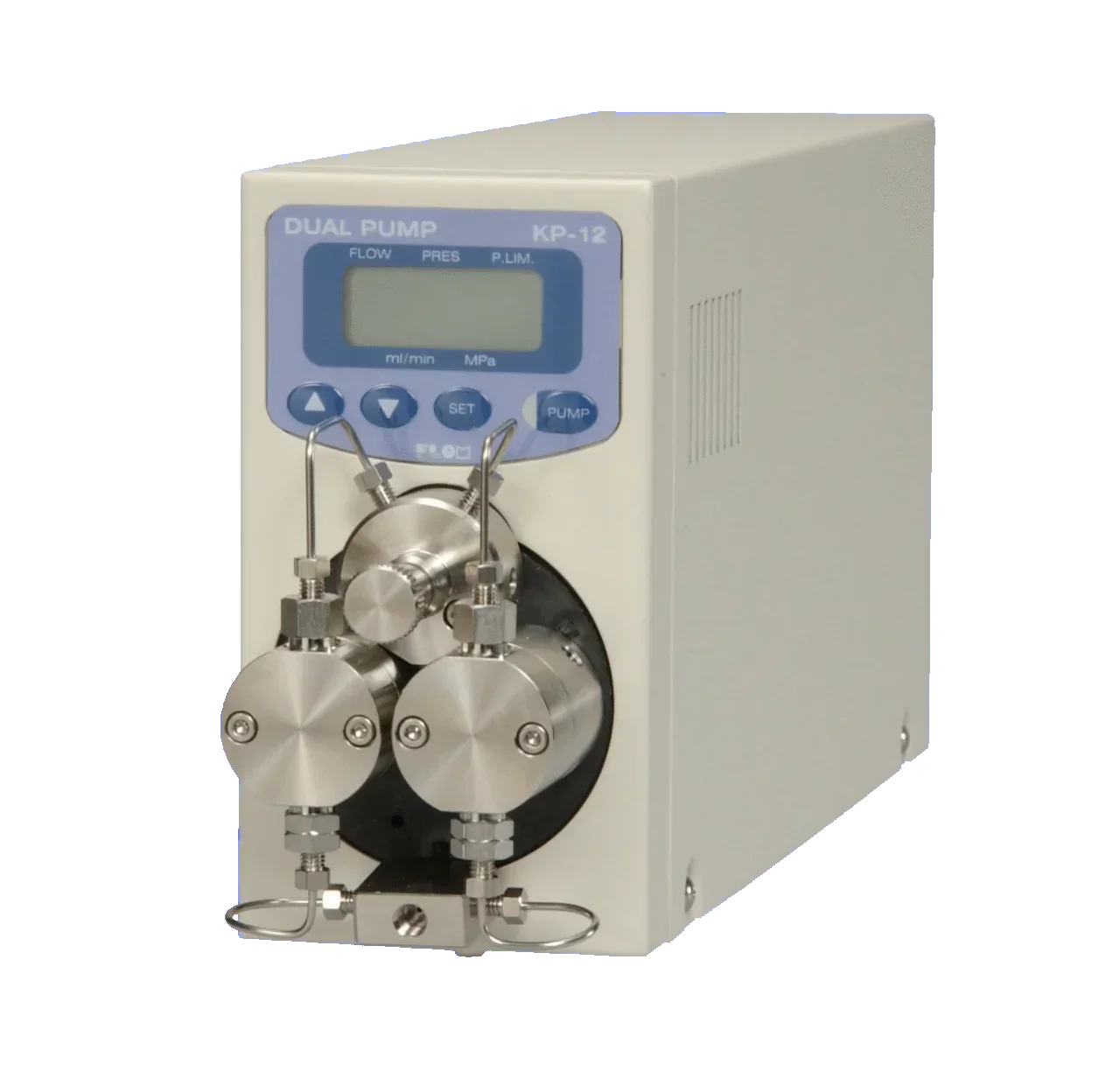

FLOM KP-12 PEEK / Ausstellungsstück
DUAL PUMP KP-12 seriesDesigned for standard HPLC applications, KP-12 offers pressure monitoring, dosing mode, stable pressure flow and pressure limit for column protection.FEATURESCompact designFlow pressure sensor for pressure monitoringPressure limiter for column protectionDosing modeNon-metal PEEK pump availableCommunication terminal for remote pump operationThree pump models available for micro, analytical and preparative applications.
Model No.KP-12-01KP-12-13KP-12-33
Max. Pressure (MPa)20(PEEK) / 25(S.Steel)20(PEEK) / 25(S.Steel)5
Flow Rate Range0.001~1.00mL/min0.01~10.00mL/min0.1~50.0mL/min
Flow Volume Per Stroke4 µl32 µI154 µI
Flow Volume Accuracy+0.3%
Special FunctionsFlow Volume Calibration, Dispensing Mode, Flow Pressure Calibration, Constant Pressure Flow
Pressure Display Accuracy+ 5%
Wetted MaterialsS.Steel or PEEK, Sapphire, Rubby, PTFE, PCTFE
Remote Input/OutputInput PUMP ON/OFF, Flow Volume (BCD) (4-20mA analogue input optional), Output: Error
Communication PortN/A
Dimensions (mm)144(H) X 79(W) X 285(D)
WeightAppr. 3.5kg
Preis auf Anfrage

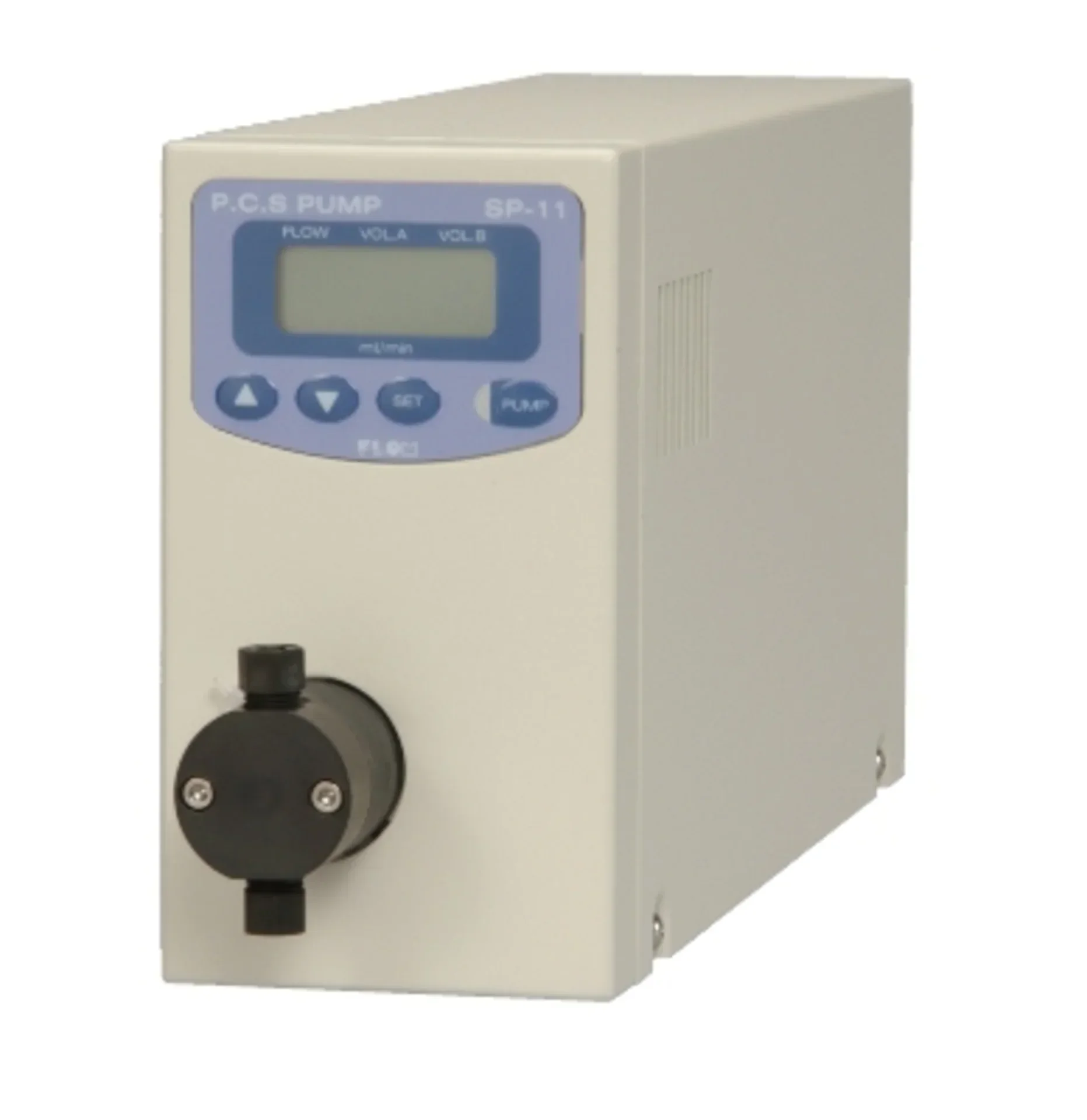

FLOM SP-11 PEEK / Ausstellungsstück
PCS PUMP SP-11 seriesSingle plunger pumps with latest technology. Delivers reliable performance for simple solvent flow operation.FEATURESCompact designQuick plunger return for shorter flow interruptionPressure limiter for column protectionDosing modeNon-metal PEEK pump availableThree pump models available for micro, analytical and preparative applications
Model No.SP-12-MSP-12-12SP-12-13SP-12-32SP-12-33
Max. Pressure (MPa)20MPa20MPa10MPa5MPa2MPa
Flow Rate Range0.01~1.00mL/min0.01~2.00mL/min0.1~5.00mL/min0.1~10.0mL/min0.1~20.0mL/min
Plunger Diameterφ 2φ 3.27 φ
Plunger Stroke2mm2mm4mm2mm4mm
Flow Volume Per Stroke8µl16µl32µl77µl154µl
Flow Volume Accuracy+ 0.5%
Special FunctionsPulse Reduction Mode, Dispensing Mode (0.01 or 0.1-1000mL)
Wetted MaterialsS.Steel or PEEK, Sapphire, Rubby, PTFE, PCTFE
Remote Input/OutputInput: PUMP ON/OFF, Flow Volume (BCD) (4-20mA analogue input optional) Output: Error
Dimensions (mm)144(H) X 79(W) X 285(D)
WeightAppr. 3.0kg
Preis auf Anfrage
FLOM SP-12 STEEL / Ausstellungsstück
PCS PUMP SP-12 seriesSingle plunger pumps with latest technology. Delivers reliable performance for simple solvent flow operation.FEATURESCompact designQuick plunger return for shorter flow interruptionFlow pressure sensor for real-time pressure monitoringPressure limiter for column protectionDosing modeNon-metal PEEK pump availableThree pump models available for micro, analytical and preparative applications
Model No.SP-12-MSP-12-12SP-12-13SP-12-32SP-12-33
Max. Pressure (MPa)20MPa20MPa10MPa5MPa2MPa
Flow Rate Range0.01~1.00mL/min0.01~2.00mL/min0.1~5.00mL/min0.1~10.0mL/min0.1~20.0mL/min
Plunger Diameterφ 2φ 3.27 φ
Plunger Stroke2mm2mm4mm2mm4mm
Flow Volume Per Stroke8µl16µl32µl77µl154µl
Flow Volume Accuracy+ 0.5%
Special FunctionsFlow Volume Calibration, Flow Pressure Calibration, Flow Pressure Limit, Pulse ReductionMode, Dispensing Mode (0.01 or 0.1-1000mL)
Wetted MaterialsS.Steel or PEEK, Sapphire, Rubby, PTFE, PCTFE
Remote Input/OutputInput: PUMP ON/OFF, Flow Volume (BCD) (4-20mA analogue input optional) Output: Error
Dimensions (mm)144(H) X 79(W) X 285(D)
WeightAppr. 3.0kg
Preis auf Anfrage
Waters 2555 Quaternäres Gradientenmodul
Number of solventsUp to four: A, B,C, D
Solvent conditioningSparging: one channel per solvent
Flow rate range4.00 to 300.00 mL/min, in 0.01 mL/min increments
Compressibility compensationAutomatic and continuous
Delay volume< 13mL
Plunger seal washIntegral, active, programmable
Gradient profiles11 gradient curves, including linear, step [2], concave [4], and convex [4]
PrimingSelf prime from solvent container on floor with dry lines
Maximum operating pressure3000 psi up to 200 mL/min; Roll off to 2500 psi at 300 mL/min
Composition accuracy± 3% absolute (full scale) from 5% to 95%; and from4 to 260 mL/min (methanol or water step gradients) at 600 psi
Composition precisionRetention time variation < 0.15 min SD,(uracil/caffeine; 5, 20, 50, 150, 300 mL/min; 70:30 water/methanol dial-a-mix)
Primary wetted materials316 stainless steel, UHMWPE blend, sapphire, ruby, Tefzel (ETFE),Teflon (FEP, PTFE, PFA), Valcon H, Zirconia ceramic, Nitronic 60, and PEEK
Flow accuracy± 1.0% of required flow (methanol or water at 600 psi) at 4 to 300 mL/min
Leak testFully automatic diagnostic
Preis auf Anfrage

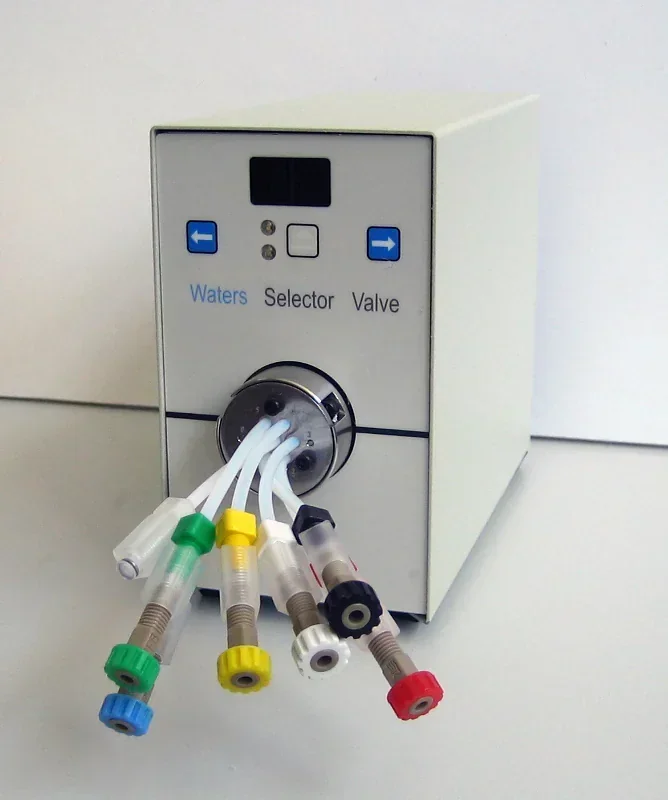

Waters Solvent Selector Valve (6 Solvents) EV100-106-WA
In OVP, neuwertig, unbenutzt
Preis auf Anfrage
