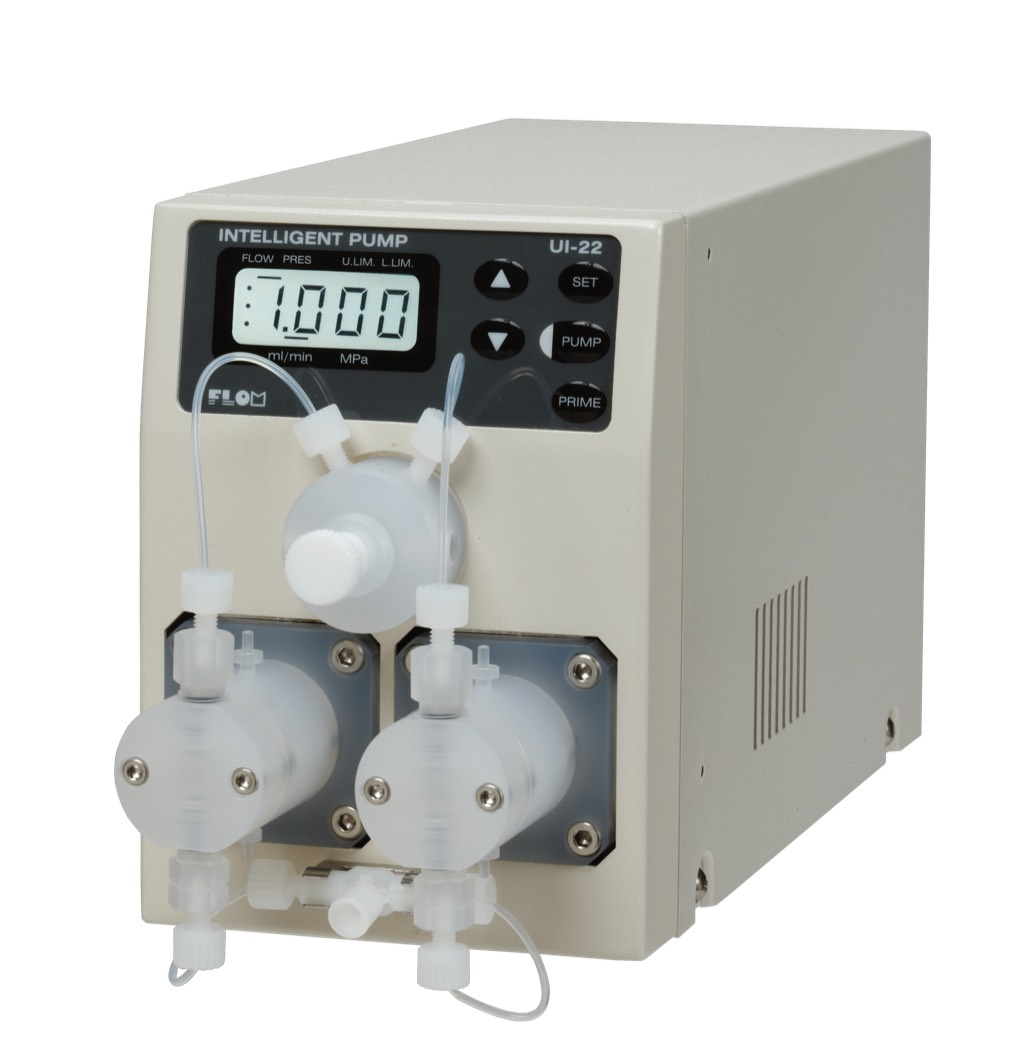

Intelligent pump PCTFE 708 μL

7.200,00 €*

Material
Max. Flow Rate
Max. Pressure
Produktnummer: FL-UI-22-410D
Produktinformationen "Intelligent pump PCTFE 708 μL"

Intelligent Pump UI-22 Series

Linear Motor Pulse Control Intelligent Pump
Combines high precision flow and ease of use

Features

  • Pulses reduced to absolute minimum making low flow rate pumping possible
  • Bubble problems greatly reduced
  • Long life plunger seal
  • Upper and lower pressure limiters
  • Space-saving compact design
  • Control with RS232C protocol
  • Choose SUS, PEEK, or PCTFE to fit your solvent
Part numberUI-22-110SUI-22-110PUI-22-110DUI-22-410SUI-22-410PUI-22-410D
Pumphead materialSUSPEEKPCTFESUSPEEKPCTFE
Max pressure*35 MPa (5075 psi)20 MPa (2900 psi)2 MPa (290 psi)5 MPa (725 psi)5 MPa (725 psi)2 MPa (290 psi)
Flow rate range**0.001 - 9.999 mL/min0.01 - 99.99 mL/min
Flow per stroke80 μL708 μL
Plunger stroke10 mm
Flow accuracy<, 0.3 %
FeaturesActive pulse reduction, upper/lower pressure limiters
Pressure accuracy<, 5 %
Wetted materialsSUS: Sapphire, Ruby, PTFE, PCTFE, PFA, FFKM, HDPE, PEEK, SUS
PEEK: Sapphire, Ruby, PTFE, PCTFE, PFA, ETFE, FFKM, HDPE, PEEK
PCTFE: Sapphire, Ruby, PTFE, PCTFE, PFA, ETFE, FFKM
Remote controlInput:PUMP ON / OFF, Output:Error signal
CommunicationRS232C , RS485(between FLOM devices)
Dimensions144 (H) × 105 (W) × 240 (D) mm, excluding protuberances
WeightApprox. 5.6 kg
PowerAC100 - 240 V(50 / 60 Hz) MAX140 VA

*: Maximum pressure is only sustained intermittently.
**: Maximum output is not sustainable over long periods of time.

Eigenschaften "Intelligent pump PCTFE 708 μL"
Material: Teflon (PCTFE)
Max. Flow Rate: 100 mL/min.
Max. Pressure: 2 MPa / 290 psi
