Sonic Reservoir Sensor, Main Unit, 3 channels for 1L solvent bottle and/or any waste containers
Skip image gallery
Picture similar to product
€720.00
Product number:
FL-SR-13
Non-contact liquid level sensor using sound wave
Features
Features
- Monitors liquid levels in solvent bottles and waste tanks
- Liquid level displays
- Alarm sounds at danger level
- One-touch connection
- Control with RS232C protocol (option)
| Specifications | |
| Product Name | Sonic Reservoir Sensor |
| Product Number | FL-SR-13 |
| Wetted Materials | Solvent probe: non-contact, Waste probe: PTFE |
| Remote Control | Input : － Output: Error |
| Communication | RS232C (option) |
| Dimensions | 115 (H) × 85 (W) × 80 (D) mm, (excluding protuberances) |
| Weight | Approx. 0.7 kg |
| Power | DC 24V , MAX 15W (AC Adapter standard) |

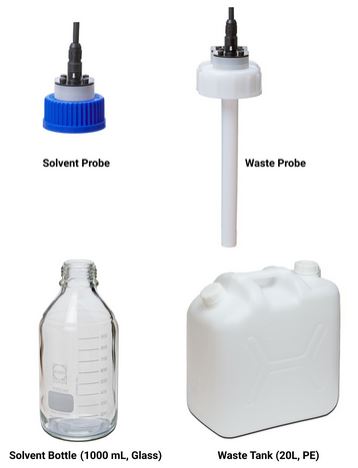

| SR-13 Accessories | ||
| Product No. | Product Name | Specifications |
| FL-FD007-502 | Solvent Probe | Non-contact liquid level sensor for 1 L solvent bottle |
| FL-FD007-503 | Waste Probe | Liquid level sensor with tubing |
| FL-FD007-504 | Solvent Bottle | Glass, 1.000 ml volume |
| FL-FD007-505 | Waste Tank | PE, 20 l volume |
| FL-FD007-506 | Serial port | RS232C Terminal |
