FLOM Auto valve unit
Skip image gallery

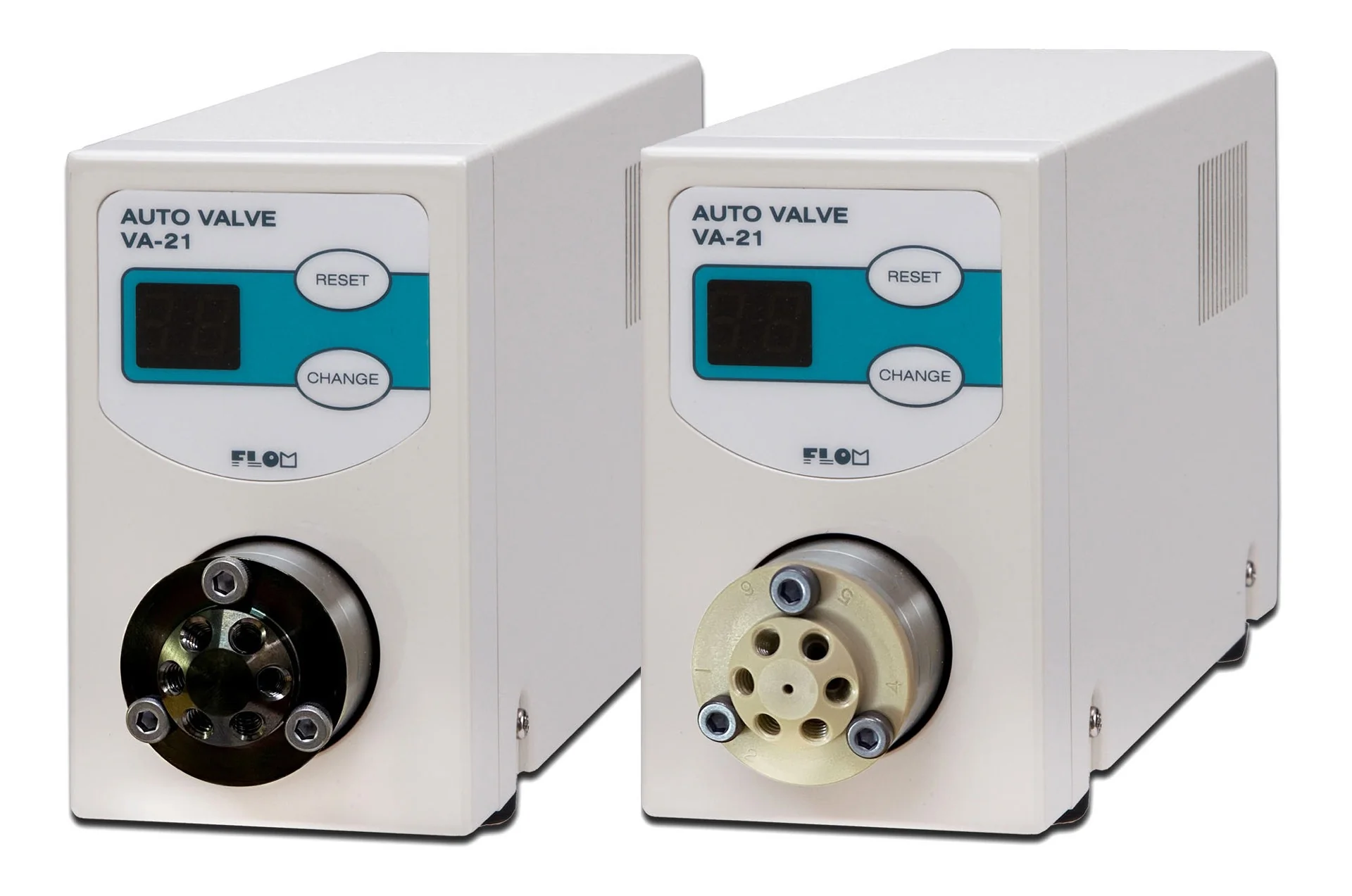

Picture similar to product
Product information "FLOM Auto valve unit"
For general, high speed, and fraction analysis, choose the flow paths you need to cover a wide variety of applications
Features
Features
- Path diameter 0.15 mm as thinner-bore available
- For UHPLC applications, maximum pressure 140 MPa (20305 psi) added
- Pick the valve type that fits your application
- Featuring high flow and non-metallic types
- Long valve life based on FLOM technology
| Product no. | Type | Max Pressure | Wetted Material | Tube OD | Thread Size | Path Diameter |
|---|---|---|---|---|---|---|
| FL-VA-21-601 | 6 Port, 2 position | 40 MPa (5800 psi) | SUS, PEEK | 1/16” | No.10-32UNF | 0.25 mm (0.01”) |
| FL-VA-21-602 | 30 MPa (4350 psi) | PEEK, Ceramic | ||||
| FL-VA-21-603 | 40 MPa (5800 psi) | SUS, PEEK | 0.5 mm (0.02”) | |||
| FL-VA-21-604 | 30 MPa (4350 psi) | PEEK, Ceramic | ||||
| FL-VA-21-605 | 20 MPa (2900 psi) | SUS, PEEK | 1.0 mm (0.04”) | |||
| FL-VA-21-606 | PEEK, Ceramic | |||||
| FL-VA-21-607 | 5 MPa (725 psi) | SUS, PEEK | 3.0 mm or 1/8” | M8×1.25 | 2 mm (0.079”) | |
| FL-VA-21-608 | PEEK, Ceramic | |||||
| FL-VA-21-609 | 4 Port, 2 position | 40 MPa (5800 psi) | SUS, PEEK | 1/16” | No.10-32UNF | 0.5 mm (0.02”) |
| FL-VA-21-610 | 30 MPa (4350 psi) | PEEK, Ceramic | ||||
| FL-VA-21-611 | 2 Port, selection | 40 MPa (5800 psi) | SUS, PEEK | |||
| FL-VA-21-612 | 30 MPa (4350 psi) | PEEK, Ceramic | ||||
| FL-VA-21-613 | 5 MPa (725 psi) | SUS, PEEK | 3.0 mm or 1/8” | M8×1,25 | 2 mm (0.079”) | |
| FL-VA-21-614 | PEEK, Ceramic | |||||
| FL-VA-21-615 | 4 Port, Rotary | 40 MPa (5800 psi) | SUS, PEEK | 1/16” | No.10-32UNF | 0.5 mm (0.02”) |
| FL-VA-21-616 | 30 MPa (4350 psi) | PEEK, Ceramic | ||||
| FL-VA-21-617 | 6 Port, Rotary | 40 MPa (5800 psi) | SUS, PEEK | |||
| FL-VA-21-618 | 30 MPa (4350 psi) | PEEK, Ceramic | ||||
| FL-VA-21-619 | 5 MPa (725 psi) | SUS, PEEK | 3.0 mm or 1/8” | M8×1.25 | 2 mm (0.079”) | |
| FL-VA-21-620 | PEEK, Ceramic | |||||
| FL-VA-21-621 | 12 Port, Rotary | 20 MPa (2900 psi) | SUS, PEEK | 1/16” | No.10-32UNF | 0.5 mm (0.02”) |
| FL-VA-21-622 | PEEK, Ceramic | |||||
| FL-VA-21-623 | 8 Port, 2 position | SUS, PEEK | ||||
| FL-VA-21-624 | 8 Port, Rotary | SUS, PEEK | ||||
| FL-VA-21-627 | 12 Port, 2 position | SUS, PEEK | 0.25 mm (0.01”) | |||
| FL-VA-21-628 | 6 Port, 2 position | 40 MPa (5800 psi) | SUS, PEEK | 0.15 mm (0.006”) | ||
| FL-VA-21-629 | 140 MPa (20305 psi) | SUS | ||||
| FL-VA-21-630 | SUS | 0.25 mm (0.010”) |
Properties "FLOM Auto valve unit"
| Max. Pressure: | 30 MPa |
|---|---|
| Path-ID: | 0.25 mm |
| Thread/tube size: | 10-32 for OD 1/16", 10-32 für OD 1/16" |
| Wetted material: | PEEK |
