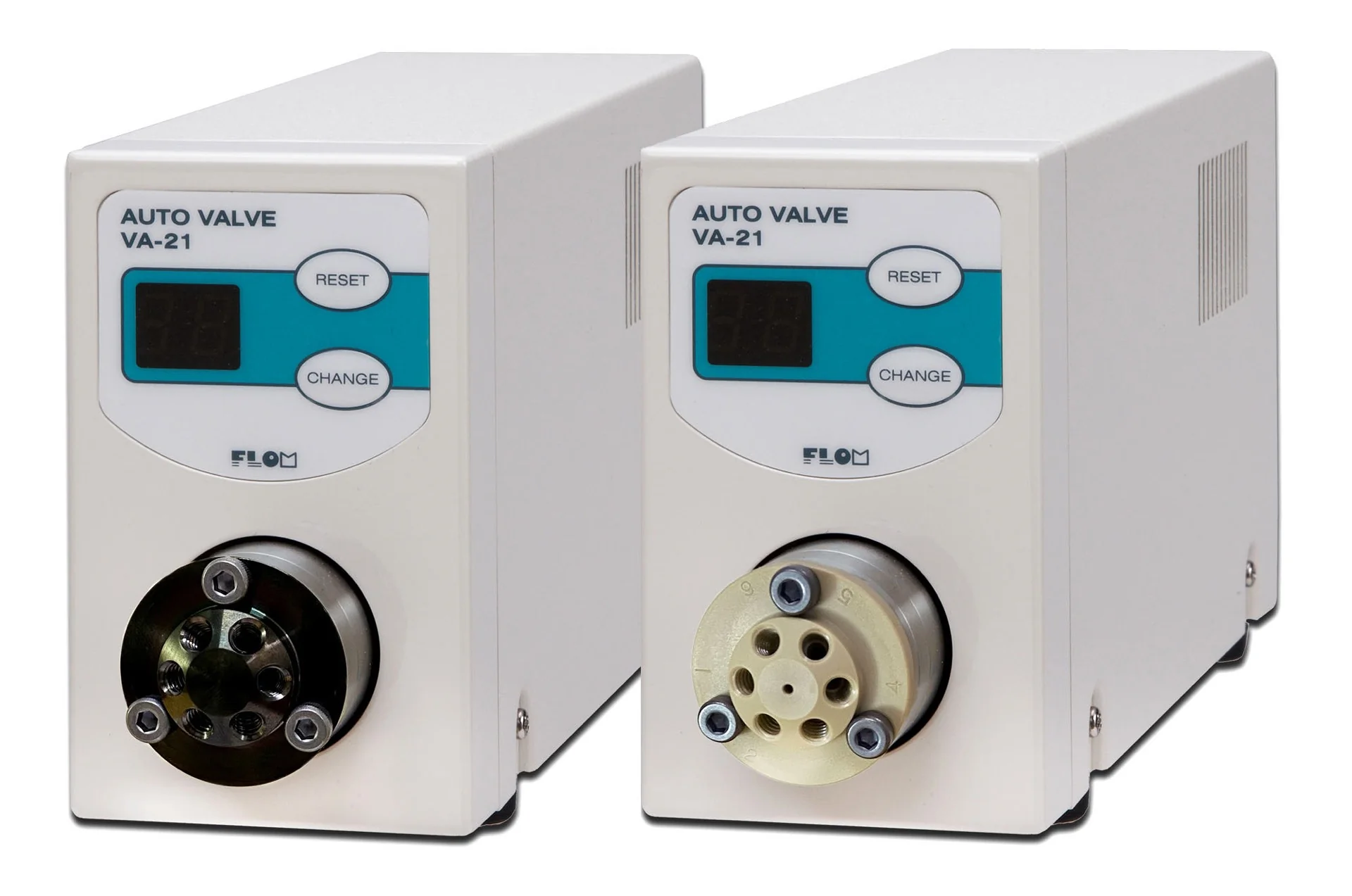

Auto valve unit
Picture similar to product
Product information "Auto valve unit"
- Space-saving compact design
- Remote control with RS232C/RS485 protocols
| Product number | VA-21-601 | VA-21-602 | VA-21-603 | VA-21-604 | VA-21-605 | VA-21-606 | VA-21-607 | VA-21-608 | VA-21-609 | VA-21-610 |
|---|---|---|---|---|---|---|---|---|---|---|
| Type | 6-port | 4-port | ||||||||

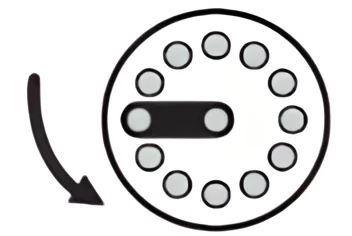

| Path Position |  |  |
||||||||
| Max Pressure | 40 MPa (5800 psi) | 30 MPa (4350 psi) | 40 MPa (5800 psi) | 30 MPa (4350 psi) | 20 MPa (2900 psi) | 5 MPa (725 psi) | 40 MPa (5800 psi) | 30 MPa (4350 psi) |
||
| Wetted materials | SUS, PEEK | PEEK | SUS, PEEK | PEEK | SUS, PEEK | PEEK | SUS, PEEK | PEEK | SUS, PEEK | PEEK |
| Tube OD | 1/16” | 3.0 mm or 1/8” | 1/16” | |||||||
| Thread size | No.10-32UNF | M8×1.25 | No.10-32UNF | |||||||
| Path diameter | 0.25 mm (0.01”) | 0.5 mm (0.02”) | 1.0 mm (0.04”) | 2 mm (0.079”) | 0.5 mm (0.02”) |
|||||
| Max. Pressure: | 20 MPa |
|---|---|
| Path ID: | 0.5 mm |
| Thread/tube size: | 10-32 for OD 1/16" |
| Wetted materials: | SUS/PEEK |
