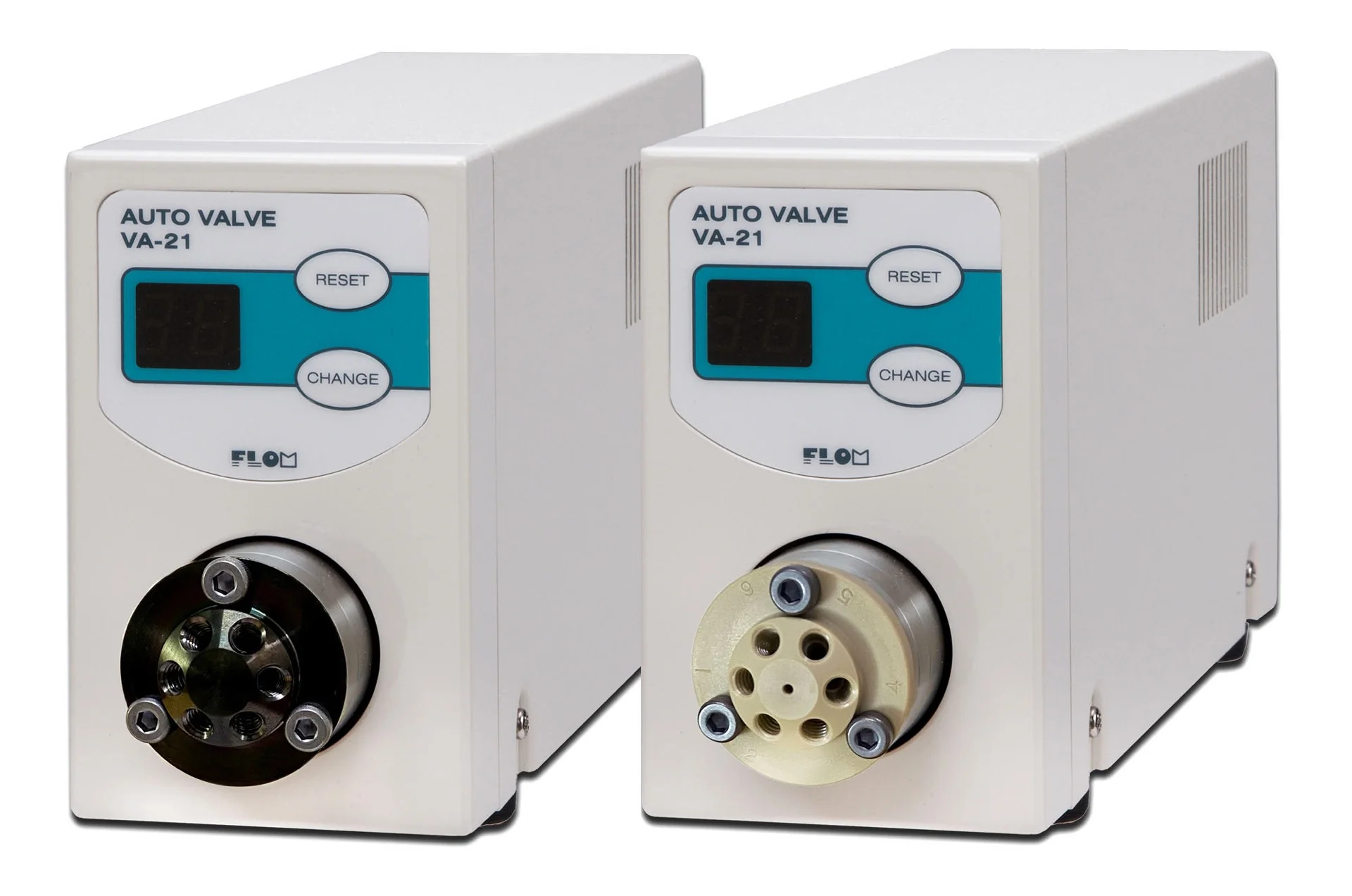

Auto valve unit
Skip image gallery
Picture similar to product
Product information "Auto valve unit"
- Space-saving compact design
- Remote control with RS232C/RS485 protocols
| Property | VA-21-601 | VA-21-602 | VA-21-603 | VA-21-604 | VA-21-605 | VA-21-606 | VA-21-607 | VA-21-608 |
|---|---|---|---|---|---|---|---|---|
| Type | 6-port | |||||||
| Path Position |  |
|||||||
| Max Pressure | 40 MPa (5800 psi) | 30 MPa (4350 psi) | 40 MPa (5800 psi) | 30 MPa (4350 psi) | 20 MPa (2900 psi) | 20 MPa (2900 psi) | 5 MPa (725 psi) | 5 MPa (725 psi) |
| Wetted materials | SUS, PEEK | PEEK | SUS, PEEK | PEEK | SUS, PEEK | PEEK | ||
| Tube OD | 1/16″ | 3.0 mm or 1/8″ | ||||||
| Thread size | No.10-32UNF | M8×1.25 | ||||||
| Path diameter | 0.25 mm (0.01″) | 0.5 mm (0.02″) | 1.0 mm (0.04″) | 2 mm (0.079″) | ||||
| Property | VA-21-609 | VA-21-610 | VA-21-611 | VA-21-612 | VA-21-613 | VA-21-614 |
|---|---|---|---|---|---|---|
| Type | 4-port | 1-2 port (3-way valve) | ||||
| Path Position |  |  |
||||
| Max Pressure | 40 MPa (5800 psi) | 40 MPa (5800 psi) | 30 MPa (4350 psi) | 5 MPa (725 psi) | ||
| Wetted materials | SUS, PEEK | PEEK | SUS, PEEK | PEEK | SUS, PEEK | PEEK |
| Tube OD | 1/16″ | 3.0 mm or 1/8″ | 3.0 mm or 1/8″ | 3.0 mm or 1/8″ | ||
| Thread size | No.10-32UNF | M8×1.25 | M8×1.25 | M8×1.25 | ||
| Path diameter | 0.5 mm (0.02″) | 2 mm (0.079″) | 2 mm (0.079″) | 2 mm (0.079″) | ||
| Property | VA-21-615 | VA-21-616 | VA-21-617 | VA-21-618 | VA-21-619 | VA-21-620 | VA-21-621 | VA-21-622 |
|---|---|---|---|---|---|---|---|---|

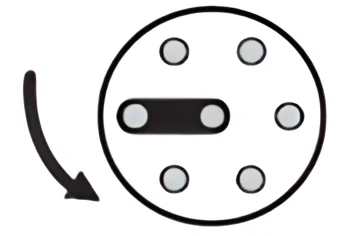

| Type | 1-4 port rotary | 1-6 port rotary | 1-12 port rotary | |||||
| Path Position |  |  |  |
|||||
| Max Pressure | 40 MPa (5800 psi) | 30 MPa (4350 psi) | 40 MPa (5800 psi) | 30 MPa (4350 psi) | 5 MPa (725 psi) | 5 MPa (725 psi) | 20 MPa (2900 psi) | |
| Wetted materials | SUS, PEEK | PEEK | SUS, PEEK | PEEK | SUS, PEEK | PEEK | SUS, PEEK | PEEK |
| Tube OD | 1/16″ | 3.0 mm or 1/8″ | 1/16″ | |||||
| Thread size | No.10-32UNF | M8×1.25 | No.10-32UNF | |||||
| Path diameter | 0.5 mm (0.02″) | 2 mm (0.079″) | 0.5 mm (0.02″) | |||||
Properties "Auto valve unit"
| Benetztes Material: | SUS/PEEK |
|---|---|
| Max. Pressure: | 5 MPa |
| Path ID: | 2.0 mm |
| Thread/tube size: | M8 x 1.25, OD 3.0 mm or 1/8" |
